72" FHWA / DOT Bike Lane Arrow Stencil

SKU 5352-072

72" FHWA / DOT Bike Lane Arrow Stencil SKU: 0352-072

This 72 inch FHWA / DOT Bike Lane Arrow Stencil can be use to indicate direction of travel in a bike lane and can be required by the MUTCD per item C in Paragraph 6 of Section 3D.01 stating that the word, symbol, and/or arrow pavement markings are required. This 72" FHWA / DOT Bike Lane Arrow Stencil could also be used in parking lots or dive ways that need direction of travel marked. All 1-800-Stencil’s are professional quality and made from either Light or Pro-Grade LDPE, Aluminum, or optional UHMW plastic to all last for years of professional use.

  • One piece
  • Easy to use
  • Meets FHWA MUTCD's specs

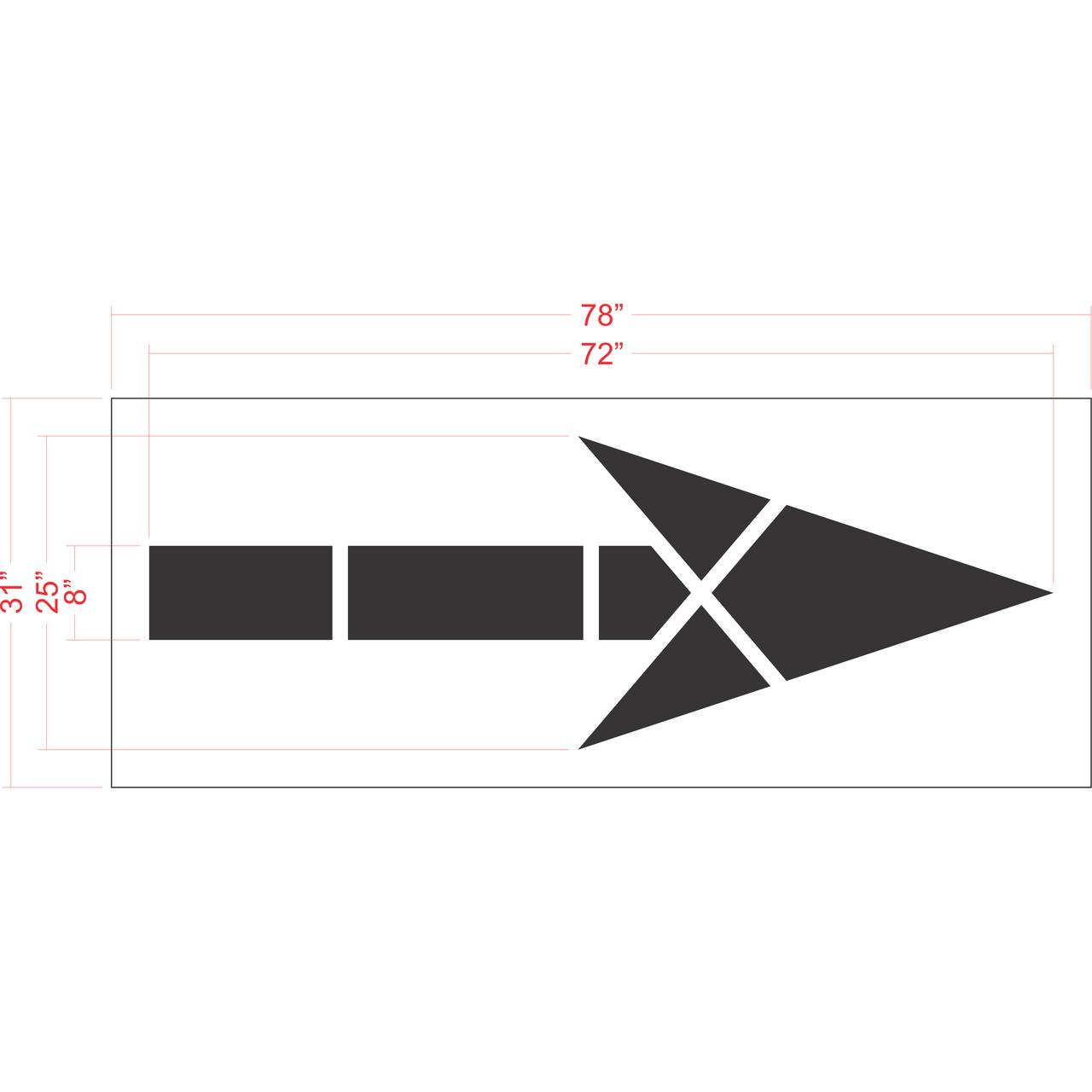

Tail Stroke 8"
Stencil Width 25"
Stencil Height 72"
Material Width 31"
Material Height 78"
Availability Usually Ships in 1-2 days or sooner*











Country of origin: USA

Warranty: Our stencils are guaranteed to be free of defects that will impede the use of the product.

Other Part Numbers

4352-072 5352-072 6352-072 7352-072


Selecting a Stencil Grade:

  • 1/8" (.125”) LDPE - PRO-Grade, our most common material, typically can be used thousands of times, and with proper care, they can last for many years. Lays Flat, and heavy enough to stay put while spraying up to 3000psi.
  • 1/16" (.063”) LDPE - What we call Light-Duty, this material is just as durable as its 1/8" counterpart, however, it is half the thickness and can be flimsy. We recommend this for stencils that aren't used every day.
  • 5/64” (.080”) ALUM - Aluminum can last almost forever, you can reuse it and abuse it. It will be ready to work today and in 10 years. The ridged 5052 Aluminum we use is also perfect for thermoplastic extruding, saving hundreds of Dollars per Legend. Shown here in .080” thickness, but it is also available in .190” (6061) which is harder, thicker, and stronger.
  • 1/4” (.025”) UHMW – Preferred by municipalities for its superior strength, it can be loaded with many coats of paint and remain rigid without sagging. Ultra-High-Molecular-Weight Polyethylene is highly resistant to corrosive chemicals and highly resistant to abrasion. Shown here in 1/4” thickness, but also available in 3/8” or 1/2” versions.
