SKU 5147-C04

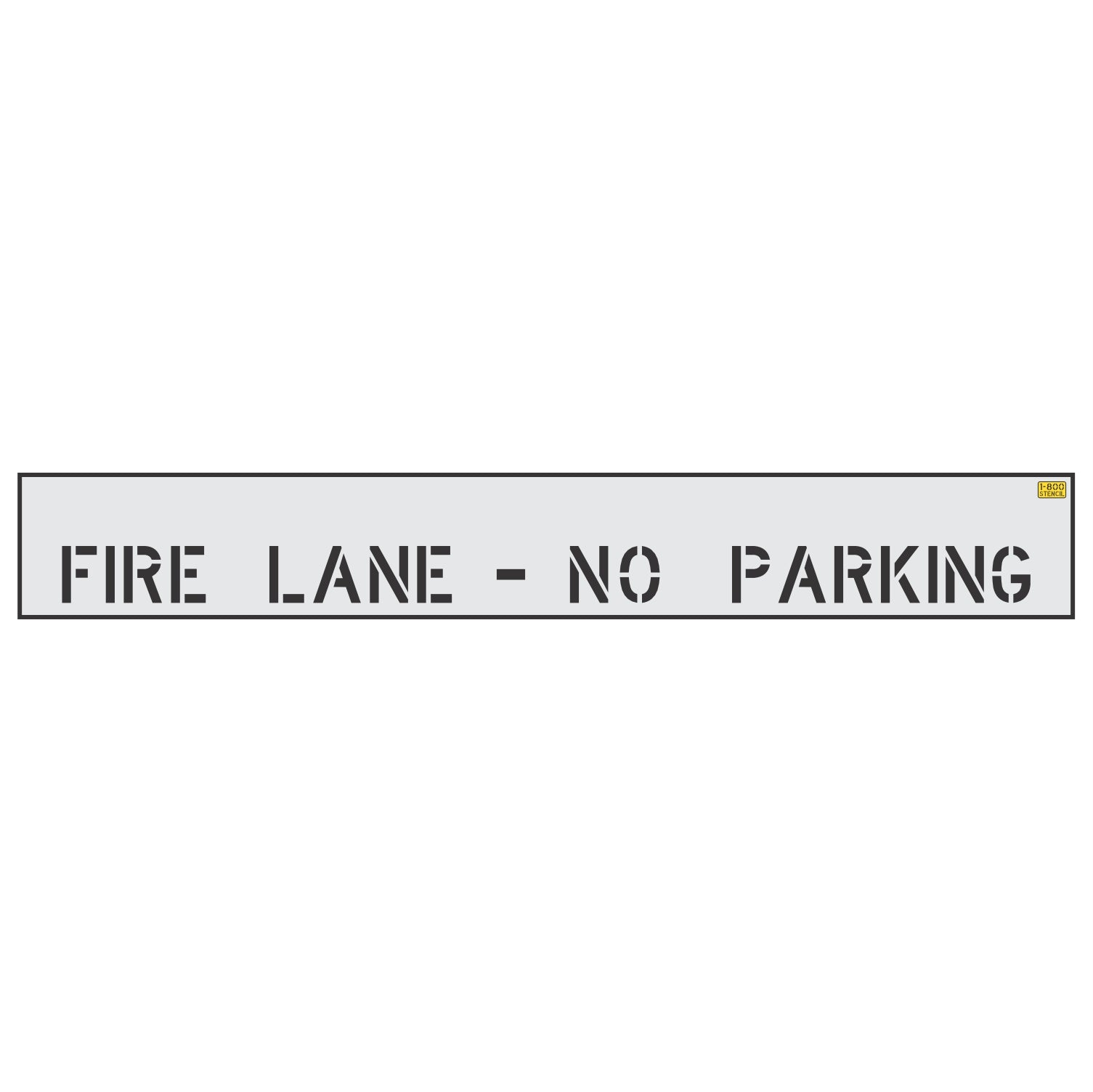

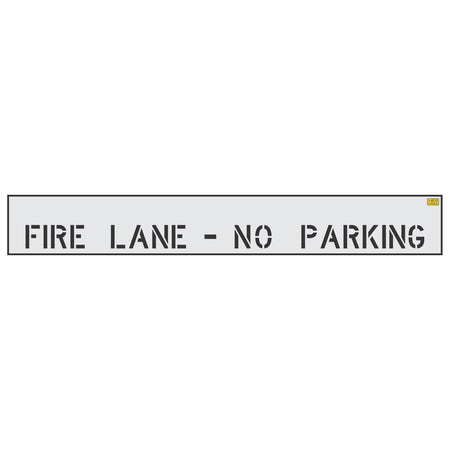

4" FIRE LANE - NO PARKING Stencil SKU: 0147-004

Many areas in the United States have recently implemented a new Fire Lane Program, requiring parking lots to have a clearly marked "FIRE LANE" signified by 2 Red lines painted 24' apart. Most of these also require the wording "FIRE LANE - NO PARKING" to be painted every 20-30'. In order to make this easier on you, we have made this stencil in one piece for consistent spacing and quality. As most contractors will need more than one of these stencils, we are now offering discounts on multiple piece orders.

  • One piece for easy use
  • Two options for painting convenience
  • Consistent spacing or words every time

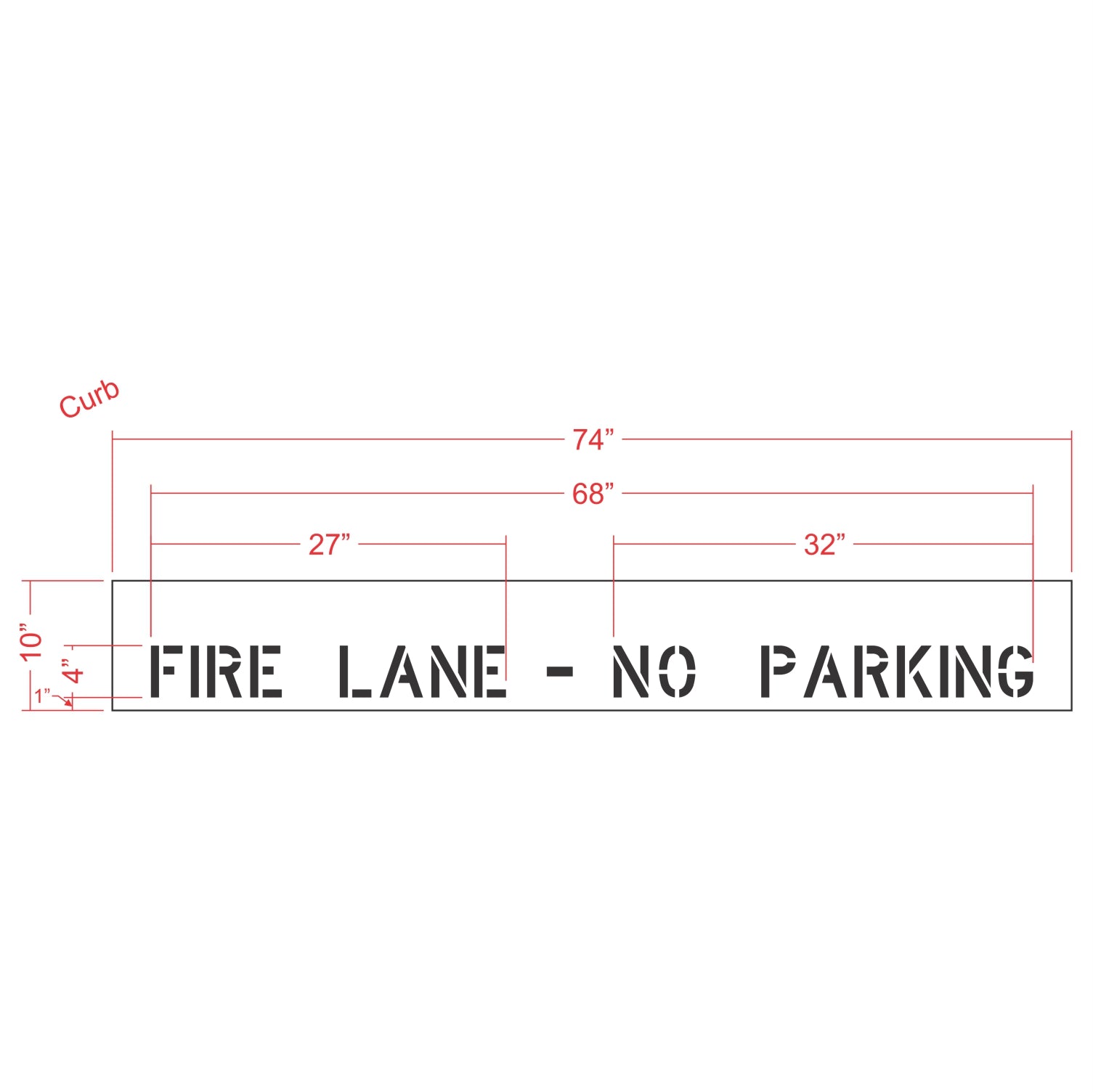

Stencil Width 68"
Stencil Height 4"
Material Width 74"
Material Height 10"
Availability In Stock - Ships Same Day*
Stroke Width .625"
Number of pieces 1



Country of origin: USA

Warranty: Our stencils are guaranteed to be free of defects that will impede the use of the product.

Other Part Numbers

4147-S04 5147-S04 6147-S04 7147-S04

4147-C04 5147-C04 6147-C04 7147-C04


Selecting a Stencil Grade:

  • 1/8" (.125”) LDPE - PRO-Grade, our most common material, typically can be used thousands of times, and with proper care, they can last for many years. Lays Flat, and heavy enough to stay put while spraying up to 3000psi.
  • 1/16" (.063”) LDPE - What we call Light-Duty, this material is just as durable as its 1/8" counterpart, however, it is half the thickness and can be flimsy. We recommend this for stencils that aren't used every day.
  • 5/64” (.080”) ALUM - Aluminum can last almost forever, you can reuse it and abuse it. It will be ready to work today and in 10 years. The ridged 5052 Aluminum we use is also perfect for thermoplastic extruding, saving hundreds of Dollars per Legend. Shown here in .080” thickness, but it is also available in .190” (6061) which is harder, thicker, and stronger.
  • 1/4” (.025”) UHMW – Preferred by municipalities for its superior strength, it can be loaded with many coats of paint and remain rigid without sagging. Ultra-High-Molecular-Weight Polyethylene is highly resistant to corrosive chemicals and highly resistant to abrasion. Shown here in 1/4” thickness, but also available in 3/8” or 1/2” versions.
