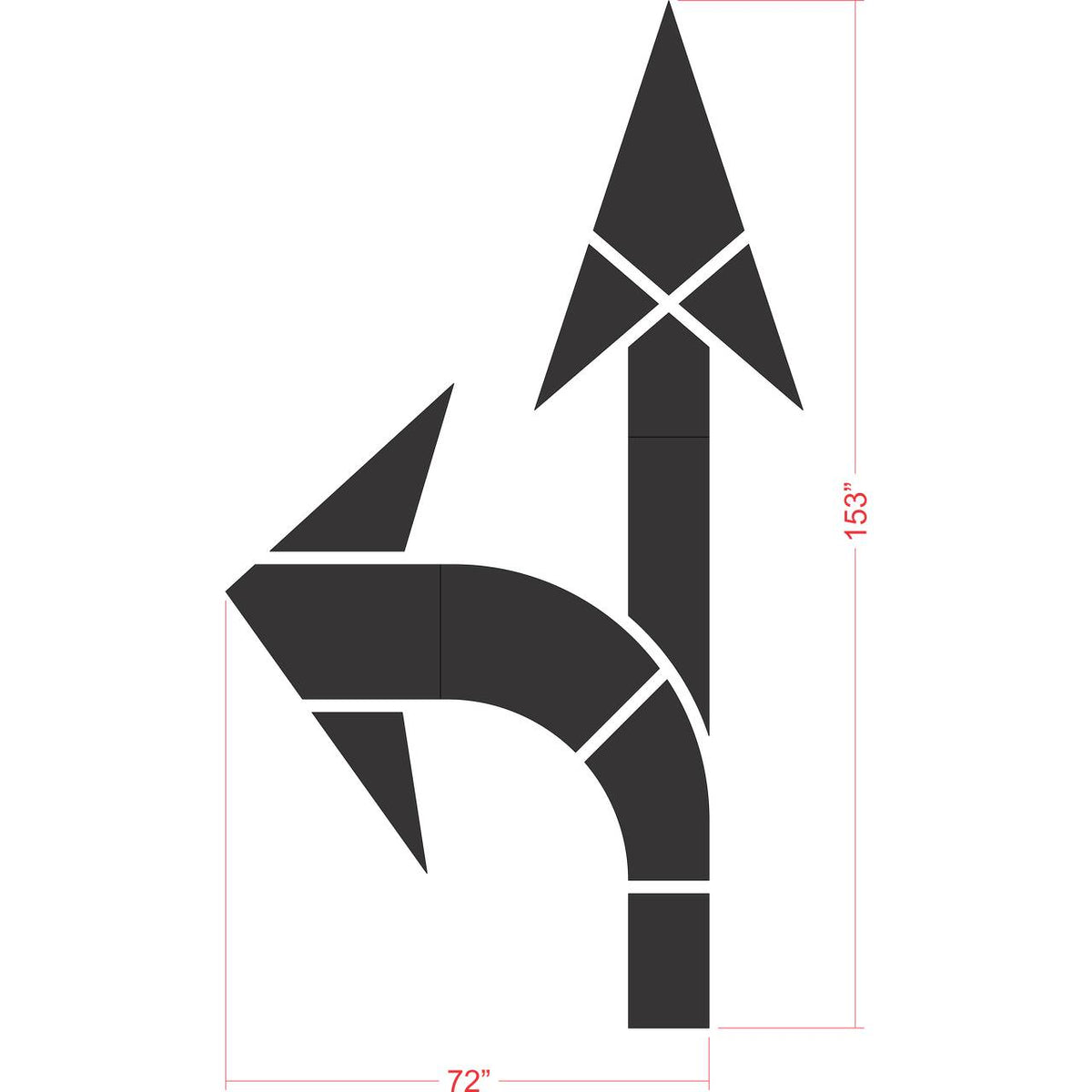

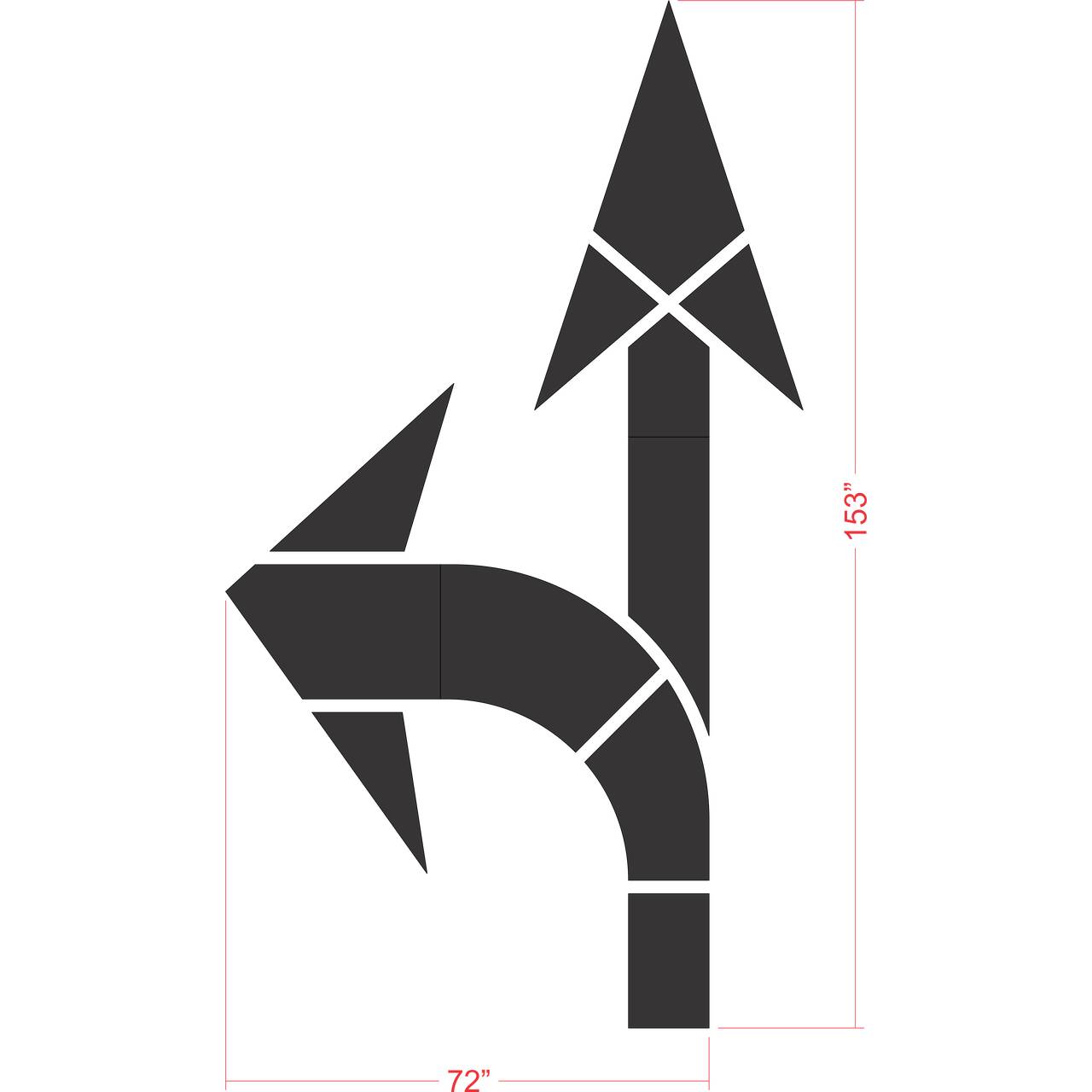

153" FHWA/DOT Combo Arrow Stencil

In stock
SKU: 5342-153
$448.44

153" FHWA/DOT Combo Arrow Stencil SKU: 0342-153

The 153 inch FHWA (Federal Highway Administration) Combo Arrow stencil is the design that the FHWA released as the standard arrow for all publicly accessible roads and highways. There have been many modifications made to this shape by some states that require a different arrow shape, so it is always best to be sure that the shape and dimensions displayed match the arrow you are painting. We do offer arrows that are per each states specs, you can search on the site or give us a call at 1-800 STENCIL anytime. All 1-800-Stencil’s are professional quality and made from either Light or Pro-Grade LDPE, Aluminum, or optional HDPE plastic to all last for years of professional use.




Specifications

Tail Stroke 12"
Stencil Width

72"
Stencil Height 153"

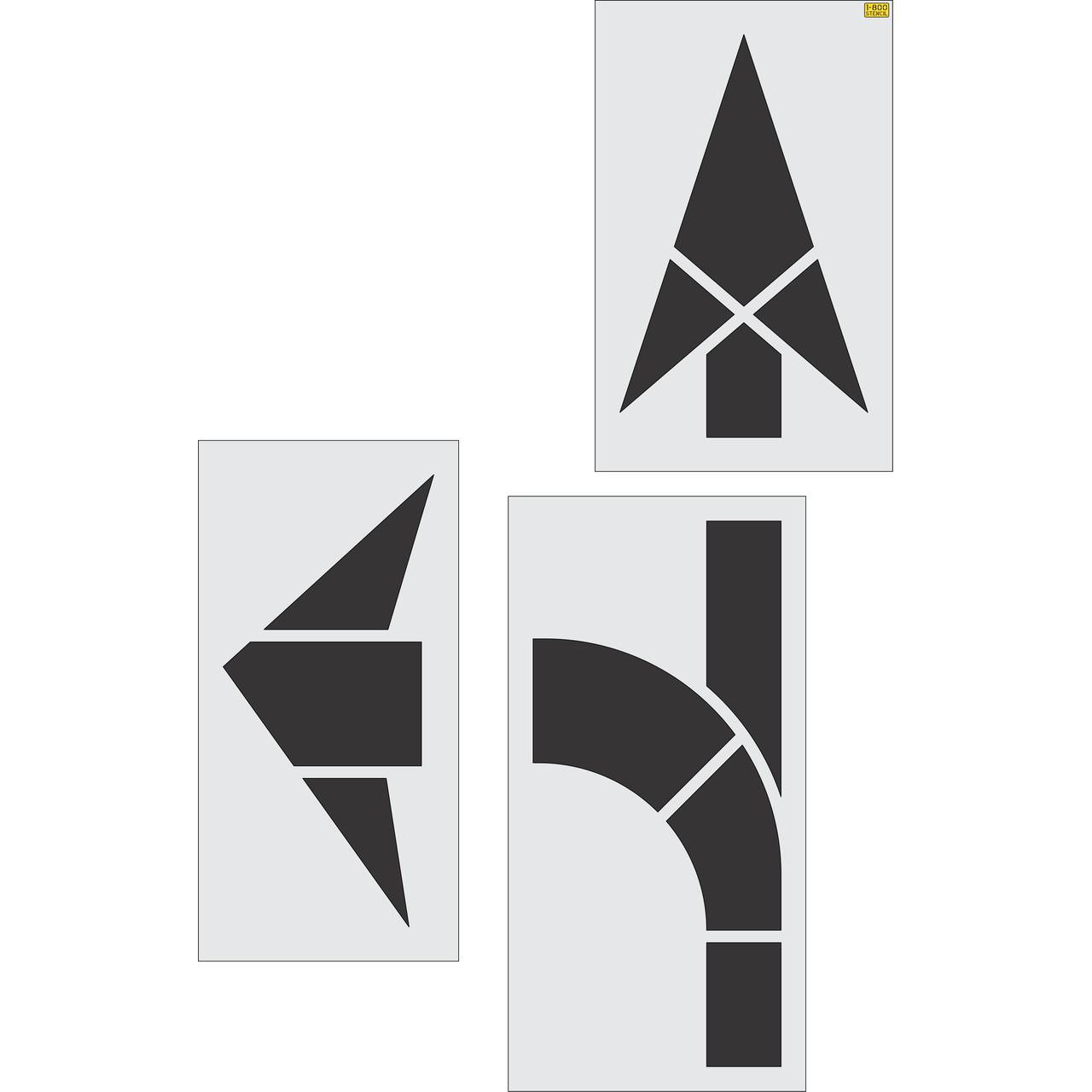

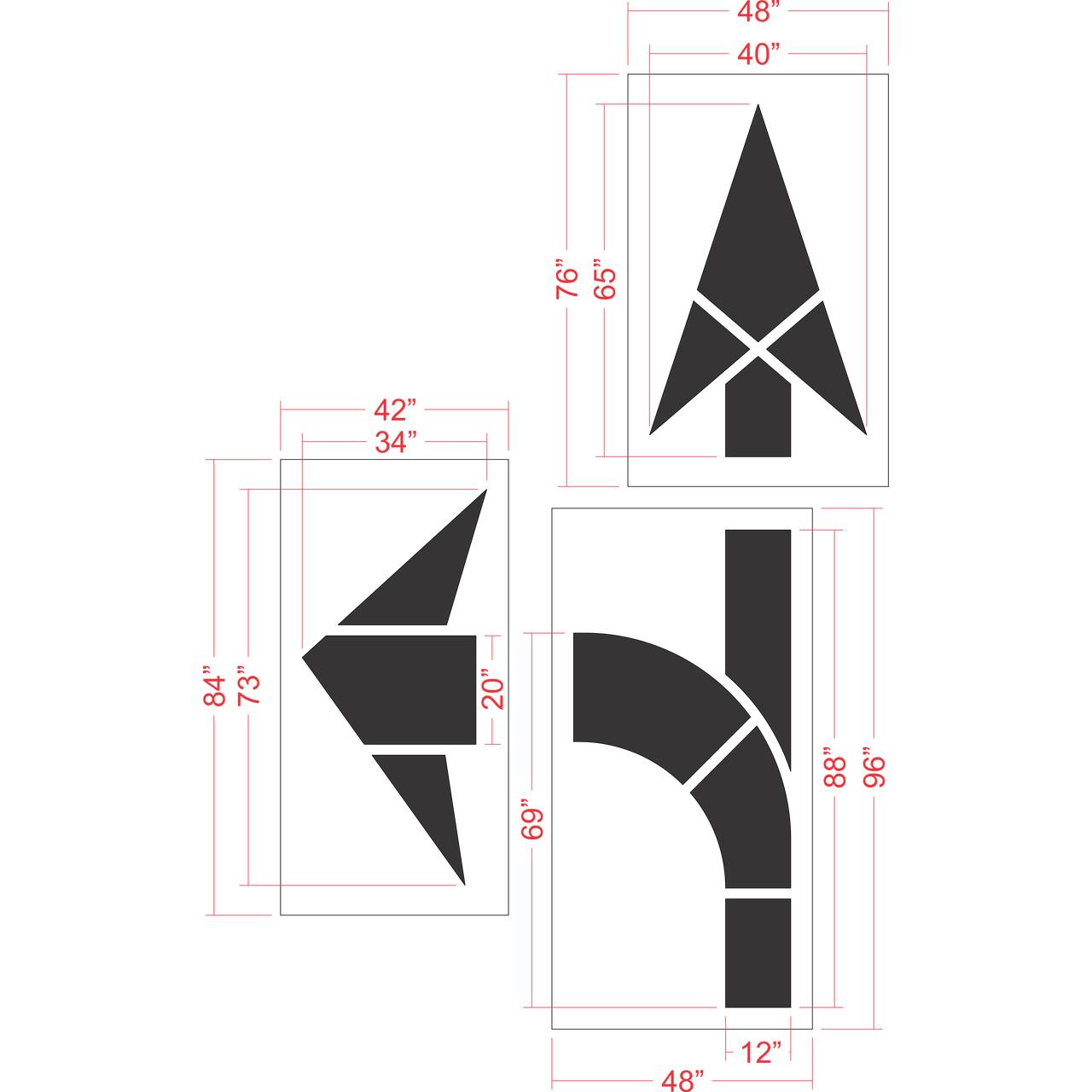

Material Width Varies (see images)
Material height Varies (see images)
Availability Usually Ships in 1-2 days or sooner*





















Country of origin: USA

Warranty: Our stencils are guaranteed to be free of defects that will impede the use of the product.

Other Part Numbers

4342-153 5342-153 6342-153 7342-153



Selecting a Stencil Grade:

  • 1/8" (.125”) LDPE - PRO-Grade, our most common material, typically can be used thousands of times, and with proper care, they can last for many years. Lays Flat, and heavy enough to stay put while spraying up to 3000psi.
  • 1/16" (.063”) LDPE - What we call Light-Duty, this material is just as durable as its 1/8" counterpart, however, it is half the thickness and can be flimsy. We recommend this for stencils that aren't used every day.
  • 5/64” (.080”) ALUM - Aluminum can last almost forever, you can reuse it and abuse it. It will be ready to work today and in 10 years. The ridged 5052 Aluminum we use is also perfect for thermoplastic extruding, saving hundreds of Dollars per Legend. Shown here in .080” thickness, but it is also available in .190” (6061) which is harder, thicker, and stronger.
  • 1/4” (.025”) HDPE – The ultimate heavy-duty option for high-traffic pavement markings, designed specifically for demanding municipal, roadway, and commercial projects. Twice the thickness of our popular Pro-Grade .125" LDPE, this rigid High-Density Polyethylene material delivers exceptional stiffness to prevent sagging on large stencils, ensuring crisp, professional results even under repeated use.

Variant SKUs

  • 1/8" (.125") PRO-Grade LDPE SKU:5342-153
  • 1/16" (.063") Light-Duty LDPE SKU:4342-153
  • 5/64" (.080") 5052 Aluminum SKU:6342-153
  • 1/4" (.25" ) Municipal-Grade HDPE SKU:7342-153

Light-Duty (DuraLast) | 1/16 Inch (.063) | Low-Density Polyethylene (LDPE)

This material is just as durable as its 1/8" counterpart, however, it is half the thickness and can be flimsy.

Pro-Grade (MaxiLast) | 1/8 Inch (.125) | Low-Density Polyethylene (LDPE)

Our most popular material, typically can be used thousands of time, and with proper care, they can last for many years. Lays flat and heavy enough to stay put while spraying up to 3000 PSI.

Heavy-Duty | 1/4 Inch (.250) | High-Density Polyethylene (HDPE)

Ultimate heavy-duty option for high-traffic pavement markings, designed specifically for demanding municipal, roadway, and commercial projects. Twice the thickness of our popular Pro-Grade. The material delivers exceptional stiffness to prevent sagging on large stencils, ensuring crisp, professional results even under repeated use.

Industrial | 5/64 Inch (.080) | 5052 Rigid Aluminum

Aluminum can last almost forever, you can reuse it and abuse it. It will be ready to work today and in 10 years. The ridged aluminum we use is also perfect for thermoplastic extruding, saving hundreds of dollars. Shown here in .080" thickness, but it is also available in .190" (6061) which is harder, thicker, and stronger.
