135" Chicago DOT Double Turn Arrow Stencil
Couldn't load pickup availability

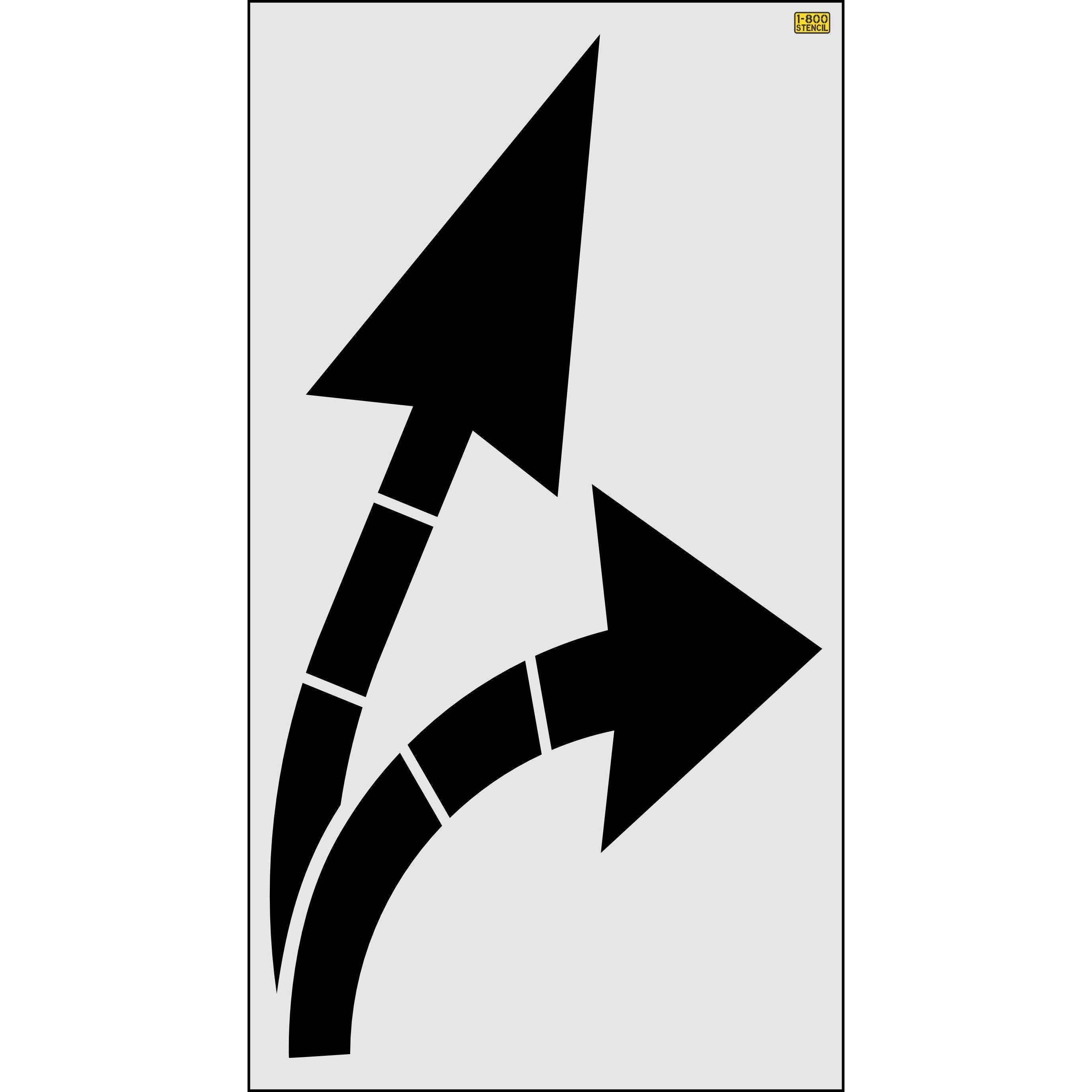

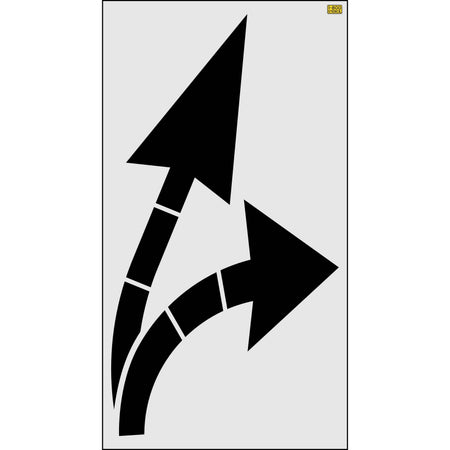

135" Chicago DOT Double Turn Arrow Stencil SKU: 1800-5CHI13
The 135 inch Chicago DOT Double Turn Arrow Stencil is the design that the Department of Transportation in Alabama released as the standard arrow for all publicly accessible roads and highways in Alabama. All 1-800-Stencil’s are professional quality and made from either Light or Pro-Grade LDPE, Aluminum, or optional UHMW plastic to all last for years of professional use.
(Chicago DOT Specifications ()
Other Chicago Stencils
-
69" Chicago DOT Bike Lane Symbol Stencil - 5CHI01
- 96" Chicago DOT Bike Lane Symbol Stencil - 5CHI02
- 72" Chicago DOT Bike Lane Arrow Stencil - 5CHI03
-
67" Chicago DOT Turn Arrow Stencil - 5CHI04
-
36" Chicago DOT Turn Arrow Stencil - 5CHI05
-
24" Chicago DOT LOOK-Arrow Stencil - 5CHI06
- 74" Chicago DOT Bike Lane Chevron Stencil - 5CHI07
-
72" Chicago DOT Bike Rider Symbol Stencil - 5CHI08
-
72" Chicago DOT Pedestrian Symbol Stencil - 5CHI09
-
120" Chicago DOT Small Block Stencil - 5CHI10
- 110" Chicago DOT Circle Template Stencil - 5CHI11A-5CHI11C
-
96" Chicago DOT Turn Arrow Stencil - 5CHI12
-
12" Chicago DOT LANE Stencil - 5CHI14
-
12" Chicago DOT BUS Stencil - 5CHI15
-
12" Chicago DOT JUMP Stencil - 5CHI16
-
72" Chicago DOT SLOW Stencil - 5CHI17
-
77" Chicago DOT Left & Right Arrow Stencil - 5CHI18
-
118" Chicago DOT Three Way Arrow Stencil - 5CHI19
-
96" Chicago DOT ONLY Stencil - 5CHI20
-
96" Chicago DOT BUS Stencil - 5CHI21
-
96" Chicago DOT AND Stencil - 5CHI22
- 96" Chicago DOT CTA Stencil - 5CHI23
- 48" Chicago Flag Star Stencil - 5CHI24
-
Welcome to CHICAGO with stars Stencil set - 5CHI25
Specifications
Tail Stroke |
12" |
Stencil Width |
74" |
Stencil Height |
135" |
Material Width | Varies |
Material Height | Varies |
Availability | In Stock - Ships Same Day* |
Warranty: Our stencils are guaranteed to be free of defects that will impede the use of the product.
Other Part Numbers
116-5CHI13 108-5CHI13 080-5CHI13 025-5CHI13
Selecting a Stencil Grade:
- 1/8" (.125”) LDPE - PRO-Grade, our most common material, typically can be used thousands of times, and with proper care, they can last for many years. Lays Flat, and heavy enough to stay put while spraying up to 3000psi.
- 1/16" (.063”) LDPE - What we call Light-Duty, this material is just as durable as its 1/8" counterpart, however, it is half the thickness and can be flimsy. We recommend this for stencils that aren't used every day.
- 5/64” (.080”) ALUM - Aluminum can last almost forever, you can reuse it and abuse it. It will be ready to work today and in 10 years. The ridged 5052 Aluminum we use is also perfect for thermoplastic extruding, saving hundreds of Dollars per Legend. Shown here in .080” thickness, but it is also available in .190” (6061) which is harder, thicker, and stronger.
- 1/4” (.025”) UHMW – Preferred by municipalities for its superior strength, it can be loaded with many coats of paint and remain rigid without sagging. Ultra-High-Molecular-Weight Polyethylene is highly resistant to corrosive chemicals and highly resistant to abrasion. Shown here in 1/4” thickness, but also available in 3/8” or 1/2” versions.
